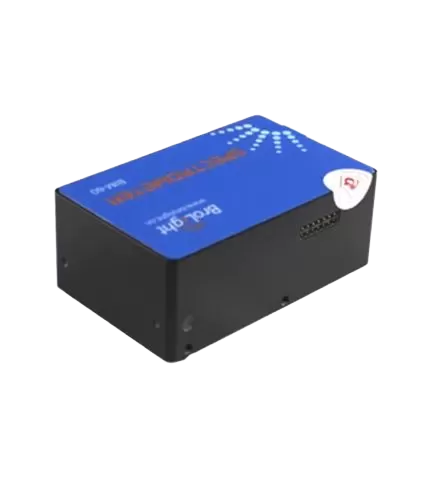

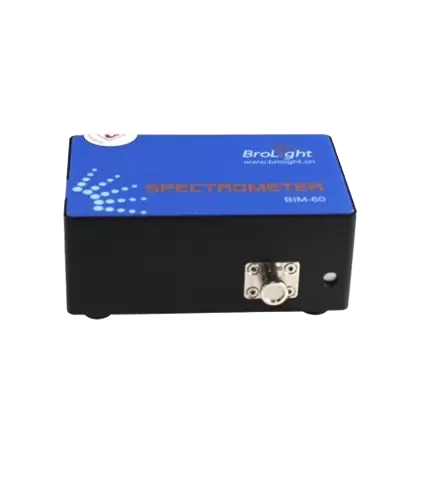

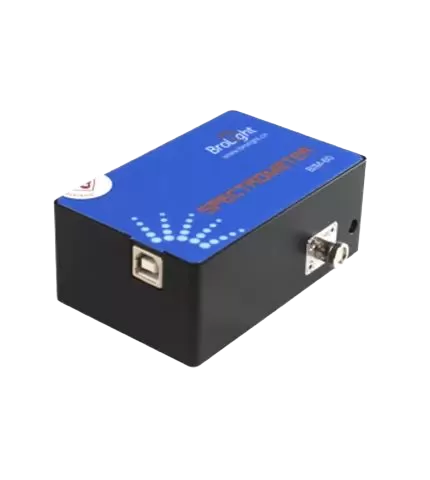

BIM-6002A/6002S 시리즈

소형 분광계

파장 범위

180nm-1100nm 옵션

해상도

최적 ~ 0.35nm

섬유 커넥터

SMA905

탐지기 유형

하마 마츠 S11639 선형 CMOS 어레이 (2048-픽셀)

검출기 픽셀

2048 픽셀, 각 픽셀 14μm × 200μm

신호 대 잡음 비율

600:1

A/D 해상도

16 비트

통합 시간

0.5ms -65 s

동적 범위

10000:1

트리거 모델

일반 모드, 소프트웨어, 하드웨어, 동기화 트리거

전력 소비

250mA,5VDC

작동 온도

5 ℃-35 ℃(25 ℃ 추천)

통신 인터페이스

USB2.0(12Mbps)

RS232(115200bps)

운영 시스템

Win XP,Win7,Win8,Win10

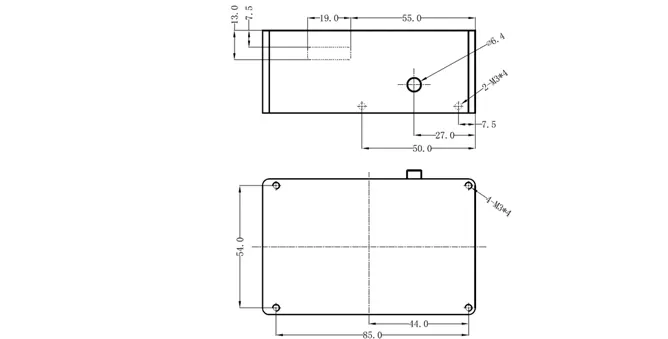

장착 구멍

바닥에 4 × M3 나사 구멍, 측면에 4 × M3

전력 공급

USB

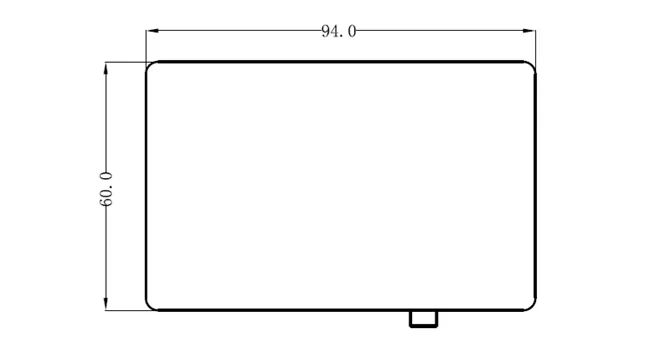

차원

94mm × 60mm × 34.5mm

무게

0.3Kg

BIM-6002A-01

BIM-6002A-01-S03L00F06G01

200-900 nm

~ 1 nm

BIM-6002A-01-S03L02F06G01

~ 1 nm

BIM-6002A-01-S04L00F06G01

~ 2 nm

BIM-6002A-01-S04L02F06G01

~ 2 nm

BIM-6002A-01-S04L02F06G17

~ 2 nm

BIM-6002A-01-S04L02F06G02

BIM-6002A-01-S05L02F06G01

~ 5 nm

BIM-6002A-02

BIM-6002A-02-S03L00F00G03

200-550 nm

~ 0.6 nm

BIM-6002A-03

BIM-6002A-03-S03L00F00G06

200-433 nm

~ 0.4 nm

BIM-6002A-04

BIM-6002A-04-S02L00F08G05

750-1100 nm

~ 0.5 nm

BIM-6002A-04-S04L01F08G05

~ 1 nm

BIM-6002A-04-S03L01F08G05

~ 0.6 nm

BIM-6002A-05

BIM-6002A-05-S03L00F05G02

350-1000 nm

~ 1 nm

BIM-6002A-05-S03L01F05G02

~ 1 nm

BIM-6002A-05-S04L00F05G02

~ 2 nm

BIM-6002A-05-S04L01F05G02

~ 2 nm

BIM-6002A-05-S04L01F05G18

~ 2 nm

BIM-6002A-05-S05L01F05G02

~ 5 nm

BIM-6002A-05-S05L01F05G18

~ 5 nm

BIM-6002A-06

BIM-6002A-06-S03L00F00G04

260-493 nm

~ 0.4 nm

BIM-6002A-07

BIM-6002A-07-S03L00F00G03

500-850 nm

~ 0.6 nm

BIM-6002A-08

BIM-6002A-08-S03L00F00G06

180-413 nm

~ 0.4 nm

BIM-6002A-08-S04L00F00G06

~ 0.7 nm

BIM-6002A-08-S05L00F00G06

~ 1.4 nm

BIM-6002A-09

BIM-6002A-09-S03L00F00G07

180-530 nm

~ 0.6 nm

BIM-6002A-10

BIM-6002A-10-S03L00F06G02

300-1000 nm

~ 1 nm

BIM-6002A-10-S03L02F06G02

BIM-6002A-10-S04L02F06G01

300-1000 nm

~ 2 nm

BIM-6002A-11

BIM-6002A-11-S03L00F06G13

200-1000 nm

~ 1.8 nm

BIM-6002A-11-S03L02F06G13

BIM-6002A-11-S04L02F06G16

~ 4 nm

BIM-6002A-12

BIM-6002A-12-S03L00F00G03

350-700 nm

~ 0.6 nm

BIM-6002A-12-S04L00F00G03

~ 1 nm

BIM-6002A-13

BIM-6002A-13-S03L00F05G02

400-1100 nm

~ 1 nm

BIM-6002A-13-S03L01F05G02

BIM-6002A-13-S04L01F05G02

~ 2 nm

BIM-6002A-14

BIM-6002A-14-S03L01F08G15

650-1000 nm

~ 0.6 nm

BIM-6002A-15

BIM-6002A-15-S03L00F00G03

300-650 nm

~ 0.6 nm

BIM-6002A-16

BIM-6002A-16-S03L00F08G05

700-1050 nm

~ 0.6 nm

BIM-6002A-17

BIM-6002A-17-S04L02F06G01

260-960 nm

~ 2 nm

BIM-6002A-18

BIM-6002A-18-S03L02F06G16

300-1100 nm

~ 1.8 nm

BIM-6002A-18-S05L02F06G16

300-1100 nm

~ 6 nm

BIM-6002A-19

BIM-6002A-19-S07L01F00G20

450-800 nm

~ 4 nm

BIM-6002A-20

BIM-6002A-20-S04L01F05G31

535-760 nm

~ 0.7 nm

BIM-6002A-20-S03L01F05G31

~ 0.4 nm

BIM-6002A-21

BIM-6002A-21-S03L00F05G19

400-850 nm

~ 0.8 nm

BIM-6002A-24

BIM-6002A-24-S03L00F00G20

430-780 nm

~ 0.6 nm

BIM-6002A-25

BIM-6002A-25-S03L02F06G17

180-880 nm

~ 1 nm

BIM-6002A-26

BIM-6002A-26-S01L00F00G03

380-730 nm

~ 0.4 nm

BIM-6002A-27

BIM-6002A-27-S02L00F00G31

460-683 nm

~ 0.3 nm

BIM-6002A-27-S03L00F00G31

~ 0.4 nm

BIM-6002A-28

BIM-6002A-28-S03L00F00G20

330-680 nm

~ 0.6 nm

1

분광기

1

2

USB 케이블

1

3

교정 보고서 (소프트웨어 및 매뉴얼 다운로드를위한 QRCode)

1

4

포장 상자

1
